ECM Motor Wiring: 16-Pin Control, 5-Pin Power and Harness Pinouts

Every Genteq ECM blower motor uses the same wiring architecture, and once you can see it, most "mystery" no-start calls stop being mysteries. There are two connectors, they do completely different jobs, and confusing them is the single most common wiring error on these motors.

The two-connector architecture

Connector	Carries	What it does
5-pin power connector	Line voltage and chassis ground	Feeds the motor electronics. Present, correct and grounded, or nothing else matters.
16-pin control connector	Low voltage: 24V tap inputs on an X13, serial communication on variable-speed families	Tells the motor what to do. Without a valid command the motor sits silent even with full line power.

Three consequences worth internalizing:

• Line voltage never goes to the 16-pin connector. Putting it there destroys the electronics instantly and is not a warranty event.
• The ground pin on the power connector is functional, not decorative. ECM electronics reference it. A marginal ground produces intermittent no-starts that read exactly like a failing motor.
• An unpowered control connector is a diagnosis, not a fault. If there is no 24V on a tap during a call, look at the board, not the motor. That sequence is in how to test an ECM blower motor.

X13 and constant-torque motors: tap addressing

An X13 is a constant-torque motor with discrete programmed speed levels. The equipment control board energizes one input on the 16-pin connector with 24V, and the motor runs the torque profile assigned to that input. There is no proportional signal and no communication: it is one tap at a time, and applying 24V to two taps at once produces undefined behavior rather than a blend.

Which tap corresponds to which airflow is set by the programming loaded for that specific application, which is why two physically identical X13 motors with different trailing digits in the part number behave differently on the same taps. Changing speed on an X13 means moving the 24V lead to a different tap, not adjusting the motor. The procedure is in how to fix the motor speed and use an active speed tab.

Variable-speed motors: 2.3, 2.5, 3.0 and EON

These do not use tap selection. The control board sends a command over the low-voltage connector and the motor targets an airflow or torque figure, adjusting continuously against changing static pressure. That is why they behave differently on a dirty filter than an X13 does: the motor works harder to hold the target instead of simply moving less air.

Practical implications when wiring one:

• A missing or noisy communication line reads as a dead motor. Check continuity and connector seating before condemning anything.
• Ramp-up and delay behavior is programmed, not a fault. See delay on and off times.
• Rotation is set by programming and orientation, not by swapping two leads as on a PSC. See how to change the motor rotation.

Harnesses: reuse the one you have

Replacement motors are supplied without a harness, because the harness in the unit is already the correct one for that equipment and cutting a new one in adds a failure point. Details in wiring harness not sold, utilize yours. Inspect it before reuse: melted insulation at the power plug, green corrosion on the pins or a loose crimp will produce the same intermittent symptoms as a bad motor, and they will do it to the new one too.

Exact pinouts for your model

Pin assignment is model and application specific, and the number stamped on the motor is the only reliable key to it. Rather than trust a generic diagram off a forum, work from the manual for the family you are holding:

• X13 installation manual (English) · Spanish · Russian · Chinese
• EON, 2.3, 2.5 and 3.0 installation manual
• X13 troubleshooting guide
• How to remove the motor and how-to videos

If the nameplate is unreadable, send photos of the motor and the equipment data plate through technical support and we will identify the connector configuration for that part number.

Protecting the electronics

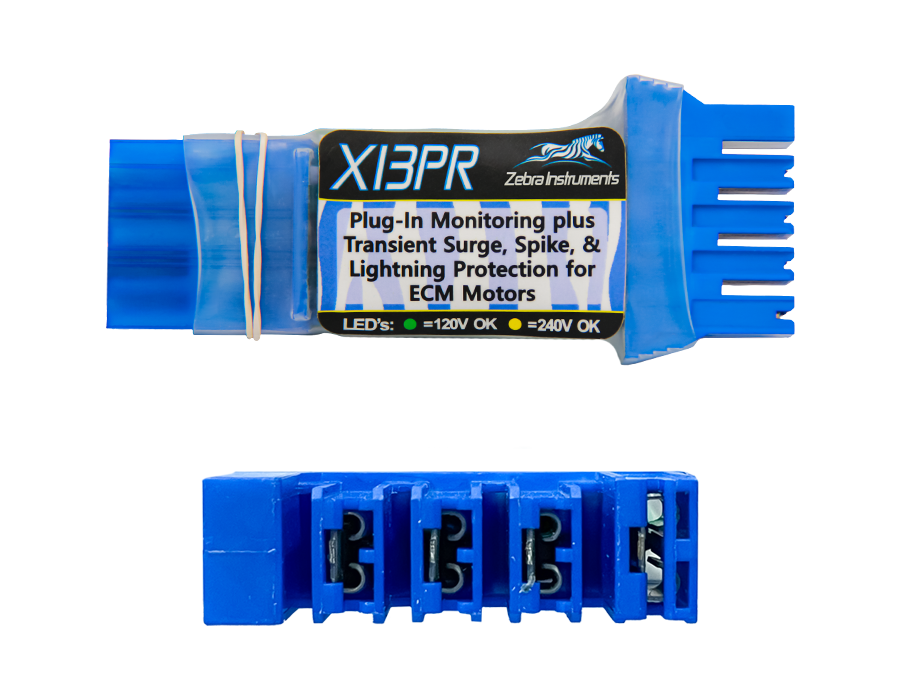

ECM modules fail from voltage events more often than from age. On installations with dirty power or frequent surges, a dedicated surge protector at the motor is cheap insurance next to a module: see X13PR install and VZPRO install, or the Zebra HVAC tools collection.

Need the motor itself

Cross-reference the Genteq or OEM number in the ECM motor cross reference, or browse X13, ECM 2.3, ECM 3.0 and EON. Motors ship programmed to the original application parameters, so the connector behavior on the replacement matches what the board expects.

FAQ

What does the 16-pin connector on an ECM motor do?

It carries low-voltage control only: 24V tap inputs on a constant-torque X13, or serial communication from the control board on variable-speed families. It never carries line voltage.

Can you run an ECM motor without the control connector?

No. Line power alone will not start it. The motor needs a valid command on the control connector before it turns.

How do you change the speed on an X13?

Move the 24V lead to a different tap on the control connector. The airflow each tap produces is fixed by the programming loaded for that application.

Why does the motor run but move the wrong amount of air?

Either the wrong tap is energized, or the motor's programming does not match the application, which is the usual outcome of fitting a generically programmed universal in place of the original. The comparison is on the Evergreen cross reference page.
